Lutron TM-9017SD is a precision thermometer with 0.01 °C resolution: two Pt 100 ohm channels (Pt1, Pt2, Pt1-Pt2) from -199.99 to 850.00 °C plus a type K/J/T/E/R/S thermocouple input, a real time SD card logger (1 to 3600 s sampling) and RS232/USB output.

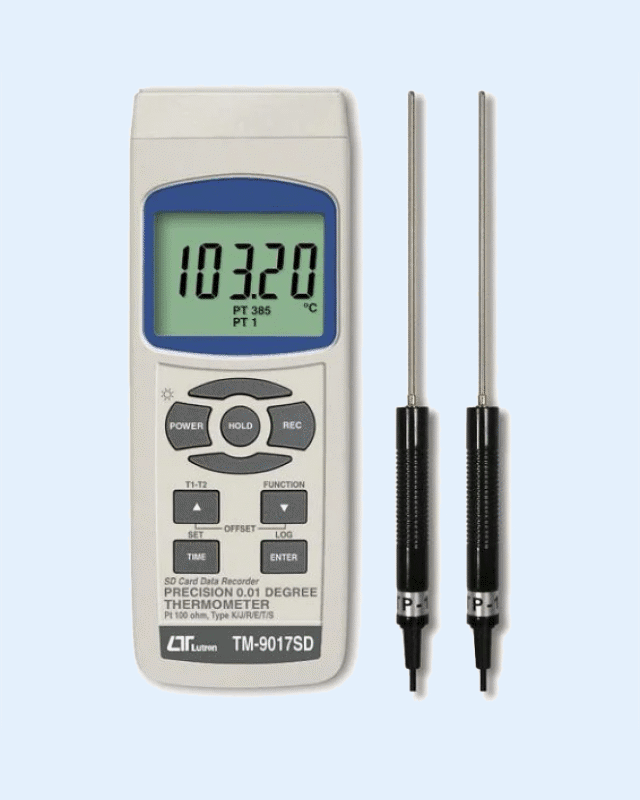

The TM-9017SD from Lutron Electronic is a precision digital thermometer with two Pt 100 ohm input channels and 0.01 °C resolution. It displays Pt1, Pt2 or the Pt1-Pt2 difference over -199.99 to 850.00 °C with an accuracy of ± (0.1 % + 0.2 °C), and also accepts type K, J, T, E, R and S thermocouple probes through a separate thermocouple socket.
A built-in real time SD card data logger with clock and calendar stores every reading with year, month, date, hour, minute and second. The sampling time is set from 1 to 3600 seconds, or readings are saved manually with position numbers 1 to 99. No extra software is needed: plug the SD card (1 GB to 16 GB) into a computer and open the data directly in Excel for further analysis.
Offset adjustment is available for both the Pt 100 ohm and the thermocouple inputs, with automatic temperature compensation and linear compensation over the full thermocouple range. The meter has a 52 x 30 mm LCD with green backlight, data hold, max/min recall and an RS232/USB PC interface, and runs on six UM3/AA batteries or an optional DC 9V adapter in a heavy duty, compact housing.
| Manufacturer | Lutron Electronic |
|---|---|
| Model | TM-9017SD |
| Channels | Pt1, Pt2, Pt1-Pt2 (Pt 100 ohm); 1 thermocouple channel, Type K/J/T/E/R/S |
| Sensor type | Type K thermocouple probe; Type J/T/E/R/S thermocouple probe; Pt 100 ohm probe (0.00385 alpha coefficient, meets DIN IEC 751) |
| Resolution | 0.01 °C / 0.1 °C / 1 °C, 0.01 °F / 0.1 °F / 1 °F |
| Pt 100 ohm (°C) | Resolution 0.01 °C: -199.99 to 199.99 °C and 200.00 to 850.00 °C, accuracy ± (0.1 % + 0.2 °C) |
| Pt 100 ohm (°F) | Resolution 0.01 °F: -327.00 to 392.00 °F and 392.00 to 1562.00 °F, accuracy ± (0.1 % + 0.4 °F) |
| Type K | Resolution 0.1 °C: -50.1 to -100.0 °C ± (0.4 % + 1 °C); -50.0 to 1300.0 °C ± (0.4 % + 0.5 °C). Resolution 0.1 °F: -58.1 to -148.0 °F ± (0.4 % + 1.8 °F); -58.0 to 2372.0 °F ± (0.4 % + 1 °F) |
| Type J | Resolution 0.1 °C: -50.1 to -100.0 °C ± (0.4 % + 1 °C); -50.0 to 1200.0 °C ± (0.4 % + 0.5 °C). Resolution 0.1 °F: -58.1 to -148.0 °F ± (0.4 % + 1.8 °F); -58.0 to 2192.0 °F ± (0.4 % + 1 °F) |
| Type T | Resolution 0.1 °C: -50.1 to -100.0 °C ± (0.4 % + 1 °C); -50.0 to 400.0 °C ± (0.4 % + 0.5 °C). Resolution 0.1 °F: -58.1 to -148.0 °F ± (0.4 % + 1.8 °F); -58.0 to 752.0 °F ± (0.4 % + 1 °F) |
| Type E | Resolution 0.1 °C: -50.1 to -100.0 °C ± (0.4 % + 1 °C); -50.0 to 900.0 °C ± (0.4 % + 0.5 °C). Resolution 0.1 °F: -58.1 to -148.0 °F ± (0.4 % + 1.8 °F); -58.0 to 999.9 °F ± (0.4 % + 1 °F). Resolution 1 °F: 1000.0 to 1652.0 °F ± (0.4 % + 2 °F) |
| Type R | Resolution 1 °C: 0 to 1700 °C ± (0.5 % + 3 °C). Resolution 1 °F: 32 to 3092 °F ± (0.5 % + 5 °F) |
| Type S | Resolution 1 °C: 0 to 1500 °C ± (0.5 % + 3 °C). Resolution 1 °F: 32 to 2732 °F ± (0.5 % + 5 °F) |
| Accuracy note | Accuracy is specified for the meter only; Pt 100 ohm and thermocouple probes are optional accessories |
| Temperature compensation | Automatic temperature compensation for type K/J/T/E/R/S |
| Linear compensation | Linear compensation for the full range |
| Offset adjustment | Available for Type K/J/T/E/R/S and Pt 100 ohm |
| Datalogger sampling time | Auto: 1 second to 3600 seconds (at 1 second, memory data may be lost); Manual: push the data logger button once to save data one time (sampling time set to 0 second), position (location) no. 1 to 99 |
| Memory card | SD memory card, 1 GB to 16 GB |
| Advanced setting | Clock time (year/month/date, hour/minute/second), sampling time, auto power off management, beep sound ON/OFF, decimal point of SD card, SD card format, temperature unit °C/°F, thermocouple type K/J/R/E/T/S |
| Circuit | Custom one-chip microprocessor LSI circuit |
| Display | LCD size 52 mm x 30 mm, green backlight (ON/OFF) |
| Display sampling time | Approx. 1 second |
| Probe input socket | Type K/J/T/E/R/S: 2 pin thermocouple socket; Pt 100 ohm: 4 DIN socket |
| Over indication | Shows "- - - -" |
| Data hold | Freezes the display reading |
| Memory recall | Maximum and minimum value |
| Data output | RS 232/USB PC computer interface (optional RS232 cable UPCB-02, optional USB cable USB-01) |
| Power off | Auto shut off saves battery life, or manual off by push button |
| Operating temperature | 0 to 50 °C |
| Operating humidity | Less than 85% R.H. |
| Power supply | UM3/AA (1.5 V) batteries x 6 or equivalent; AC/DC power adapter (DC 9V) optional |
| Power current | Normal operation (no SD card saving, backlight OFF): approx. DC 13 mA; while saving to SD card (backlight OFF): approx. DC 31 mA; backlight ON adds approx. 4 mA |
| Standards | ISO-9001, CE, IEC1010 |
| Dimensions | 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inch) |
| Weight | 242 g / 0.53 LB (without batteries) |
| Accessories included | Instruction manual x 1 |
| Optional accessories | Type K thermocouple probes TP-01, TP-02A, TP-03, TP-04, TP-05; Pt 100 ohm probe TP-100; SD card; USB cable USB-01; RS232 cable UPCB-02; data acquisition software SW-U801-WIN, SW-E802; AC to DC 9V adapter; hard carrying case CA-06; soft carrying case CA-05A |
