Buy Wet Film Combo CM-8000

Environmental & Temperature Devices

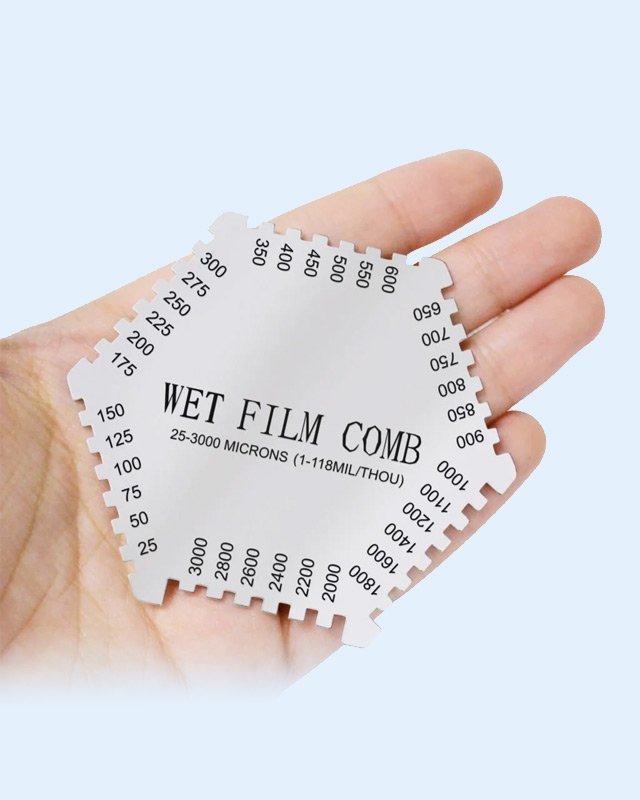

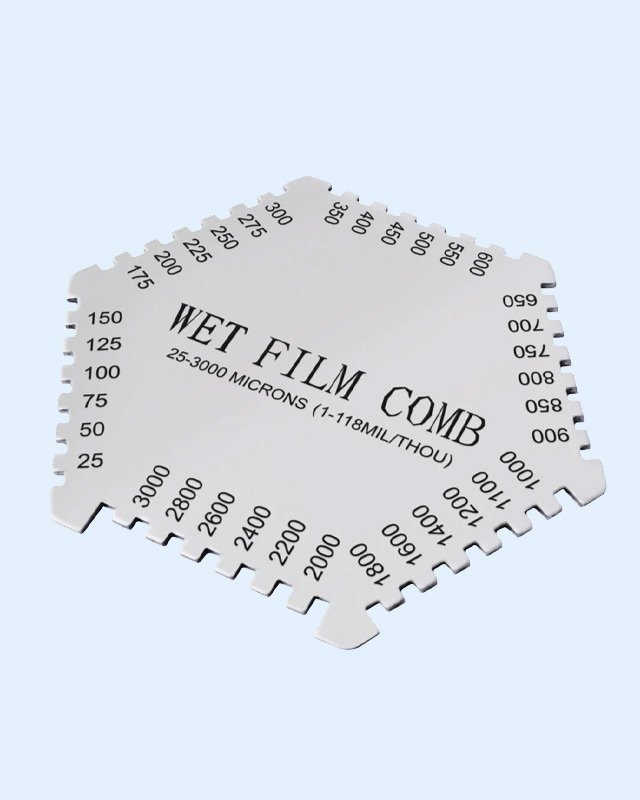

Wet Film Combo 25~3000µm Microns Micrometer / 1~118 Mil Dual Scale, Wet Paint Coating Thickness Step Notched Gauge, Hexagonal Style CM-8000

Brand: WILSONIC DEVELOPMENT CO.LTD

1,200 EGP

Used for checking the thickness coating of wet paint, enamel lacquer , adhesive, architectural coating, color coating, varnish, chemical industry, or other coating that has been applied to a smooth surface

Quantity:

Add to Cart

in Stock: 3
Country: China
SKU: 000
Tags:
Share:

Standards: GB/T1764-79 GB/T134522-92 ISO2808-74
Measuring Range: 25~3000μm / 1~118mil
Values:
- 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000µm

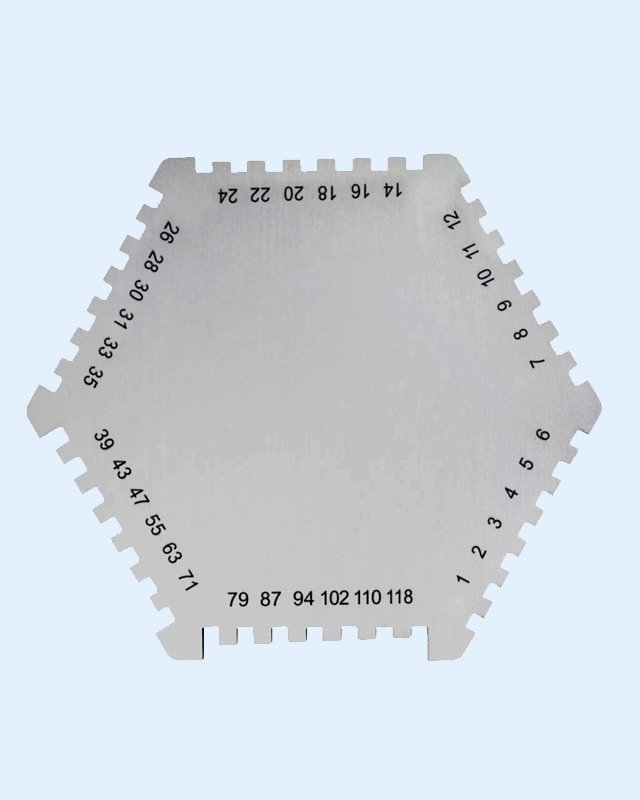

- 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14 ,16, 18, 20, 22, 24, 26, 28, 30, 31, 33, 35, 39, 43, 47, 55, 63, 71, 79, 87, 94, 102, 110, 118mil

Measuring Procedure :

Select an appropriate comb based on the known thickness.
Hold the comb perpendicular to the surface coating to be measured.
Press into the coating until the comb stands square on the substrate.
Wet film thickness is the distance between the highest-coated step and the next (higher) step, which remains uncoated.

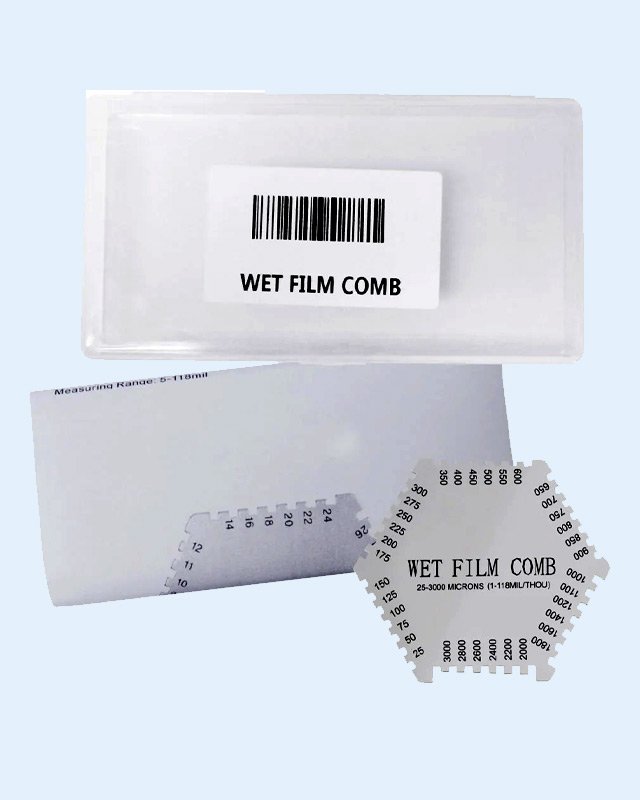

Set Includes:

1 x Wet Film Comb
1 x English Instruction Manual
Standard Packaging

Feature	Specification
Model Identification	Wet Film Combo Gauge Series CM-8000
Measurement Principle	Specialized Micro-Resistance/Induction Probe Matrix Combo
Wet Film Measuring Range	$0\text{ to }500\ \mu\text{m}$ (Micro-meters) / Adaptive high-scale limits
Digital Graduation Resolution	$1\ \mu\text{m}$ or $0.1\ \mu\text{m}$ (Depending on scale step configuration)
Display Panel Architecture	Integrated multi-metric digital LCD screen with real-time feedback
Calibration Logic Matrix	Manual air-zero tare baseline adjustment (ZERO reference button)
Power Source Infrastructure	$4 \times 1.5\text{V AAA}$ (UM-4) Battery cells with automated power-down safety
