Buy Wet Film Combo CM-2000

Environmental & Temperature Devices

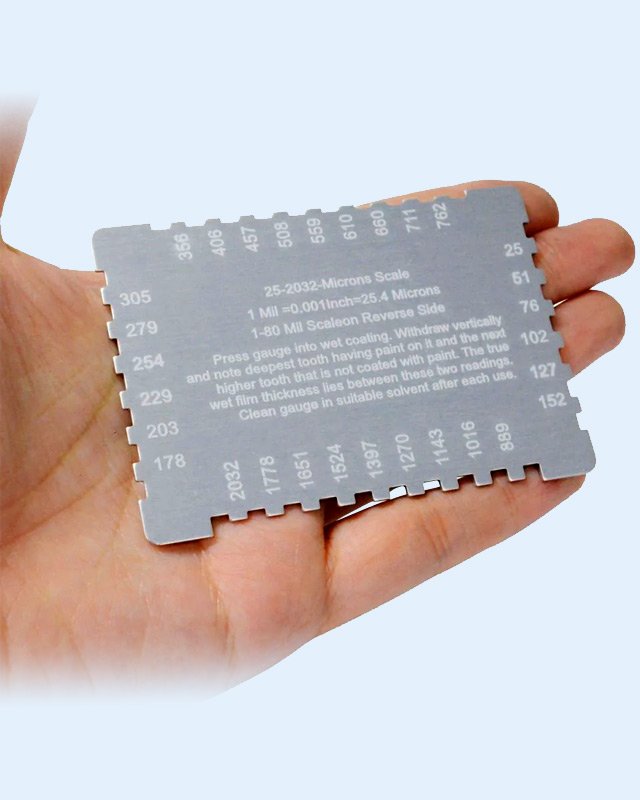

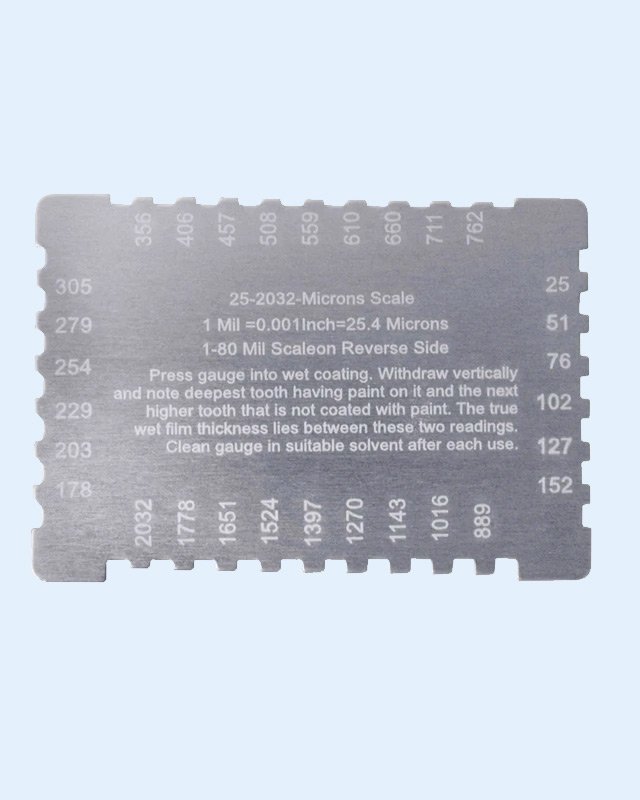

Wet Film Combo 25~2032µm Microns Micrometer / 1~80 Mil Dual Scale, Wet Paint Coating Thickness Step Notched Gauge, Rectangular Style CM-2000

Brand: WILSONIC DEVELOPMENT CO.LTD

1,200 EGP

Used for checking the coating thickness of wet paint, enamel lacquer, adhensive, architectural coating, color coating, varnish, chemical industry, or other coatings that have been applied to a smooth surface.

Quantity:

Add to Cart

in Stock: 5
Country: China
SKU: 000
Tags:
Share:

Standards: GB/T1764-79 GB/T134522-92 ISO2808-74
Measuring Range: 25~2032µm (1~80mil)
Values:
- 25, 51, 75, 102, 127, 152, 178, 203, 229, 254, 279, 305, 356, 406, 457, 508, 559, 610, 660, 711, 762, 889, 1016, 1143, 1270, 1397, 1524, 1651, 1778, 2032µm
- 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80mil

Measuring Procedure:

Select an appropriate comb according to the approximate known thickness.
Hold the comb perpendicular to the surface coating to be measured.
Press into the coating until the comb stands square on the substrate.
Wet film thickness is between the highest step, which is coated, and the next (higher) step, which remains uncoated.
Wipe & clean the combs after use.

Set Includes:
