GAM-391 Geiger Counter Nuclear Radiation Detector for X, γ and β Rays

GAM-391 Geiger Counter – Nuclear Radiation Detector

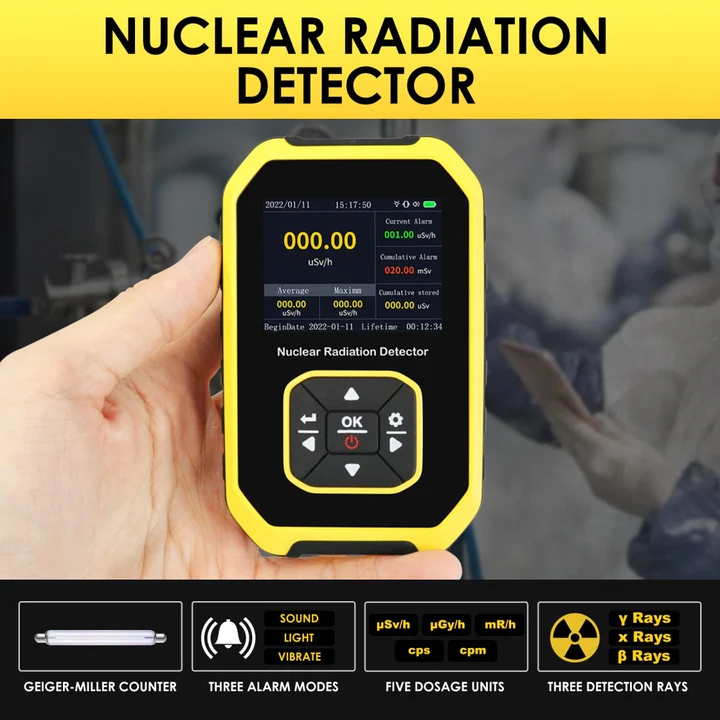

The GAM-391 is a handheld dosimeter that detects X-rays, gamma (γ) rays and beta (β) rays. Its detector is an energy-compensation GM tube with a sensitivity of 80 CPM/μSv for Co-60 and an energy range of 48 keV to 1.5 MeV (≤ ±30 % for 137Cs); the cumulative dose equivalent is recorded from 0.00 μSv to 500.0 mSv.

Readings can be shown in five switchable units – μSv/h, μGy/h, mR/h, CPS and CPM – on a high-definition LCD that also shows the real-time clock and date, average and maximum values and a graphical trend with MIN/MAX. Dose-rate and cumulative-dose alarm thresholds can be preset, with a light, vibration or sound alarm.

The meter runs on a rechargeable 1100 mAh Li battery charged through its USB Type-C port, saves its data automatically when switched off and comes with a 1-year warranty. It suits ionizing zones, factory and medical equipment, ore, power plants and the home environment, for outdoor industrial research as well as personal home use.

Key Features

• Detects X-rays, γ-rays and β-rays with an energy-compensation GM tube
• High sensitivity: 80 CPM/μSv (for Co-60)
• Five switchable dosage units: μSv/h, μGy/h, mR/h, CPS, CPM
• Preset dose-rate and cumulative-dose alarm thresholds
• Selectable alarm modes: light, vibration or sound
• Displays average and maximum values
• Graphical monitoring with MIN/MAX display
• High-definition LCD with adjustable screen brightness
• Real-time clock and date display
• Automatic data saving when the meter is turned off

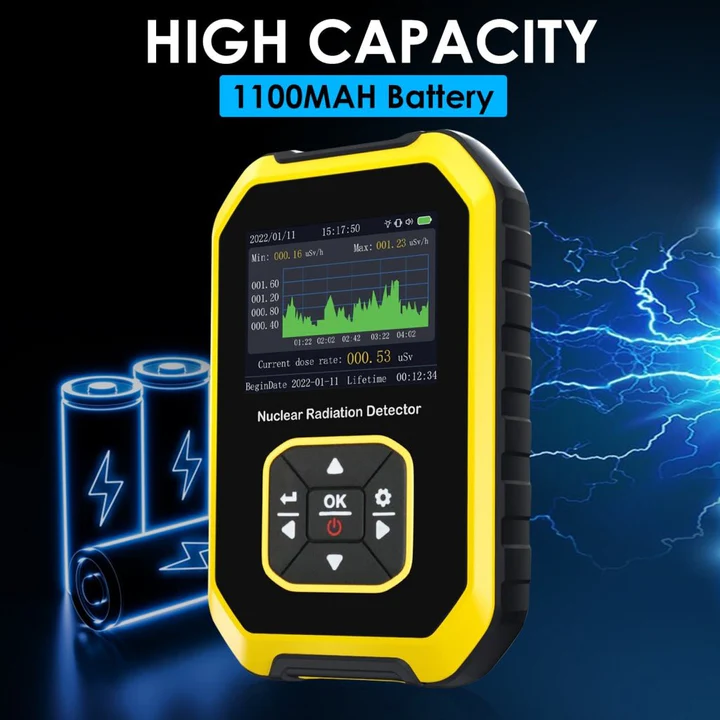

• Rechargeable 1100 mAh Li battery with low-battery indicator
• English / Chinese menu language

Package Contents

• 1 × Radiation detector
• 1 × USB Type-C charging cable
• English instruction manual
• Standard factory packaging
